Overview

An incubating 2D scroll helper.

• Measures the size and position of UI layouts on the screen
• Continuously fetches views closest to scroll position
• Applies offset X/Y to view containers
• Binds data to the containers

Example data mapping with containers A, B, C, D given scroll position of bottom right x: 4, y: 4:

     DATA        SCREEN   CONTAINERS
00 01 02 03 04  . . . . .  A -> 44
10 11 12 13 14  . . . . .  B -> 43
20 21 22 23 24  . . . _ .  C -> 33
30 31 32 33 34  . . |   |  D -> 34
40 41 42 43 44  . . | _ |

Filter and sort of list is attained by updating indexes of visible views, and does not need data reload:

DATA
# | col1 | col2      #
0                    #
.                    #
N                    # Table data

FILTER
# | DATA.#           #
0        0           # Sorted, filtered
.        .           # data indexes
M        N           # M <= N

DISPLAY
# | FILTER.# | XYWH  #
0          0         # View container
.          .         # mapping
L          M         # L <= M

Screenshots

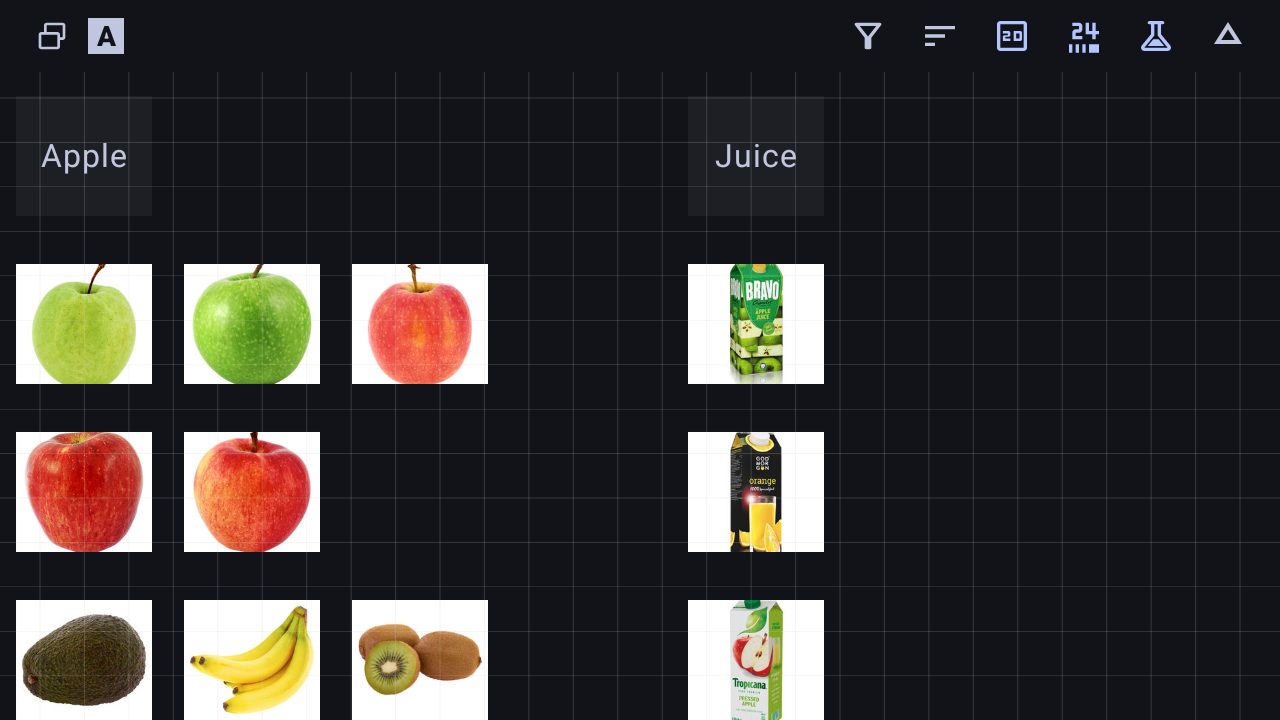

2D Scrolling

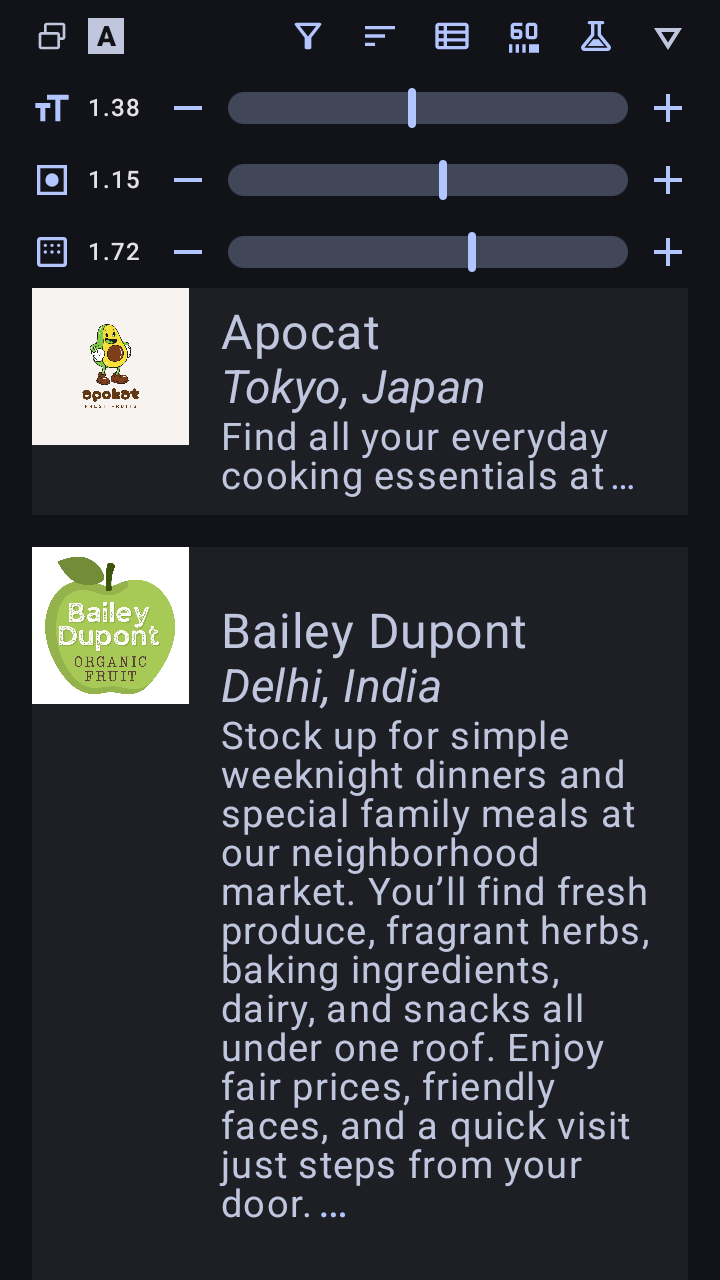

Text Scaling and Zoom

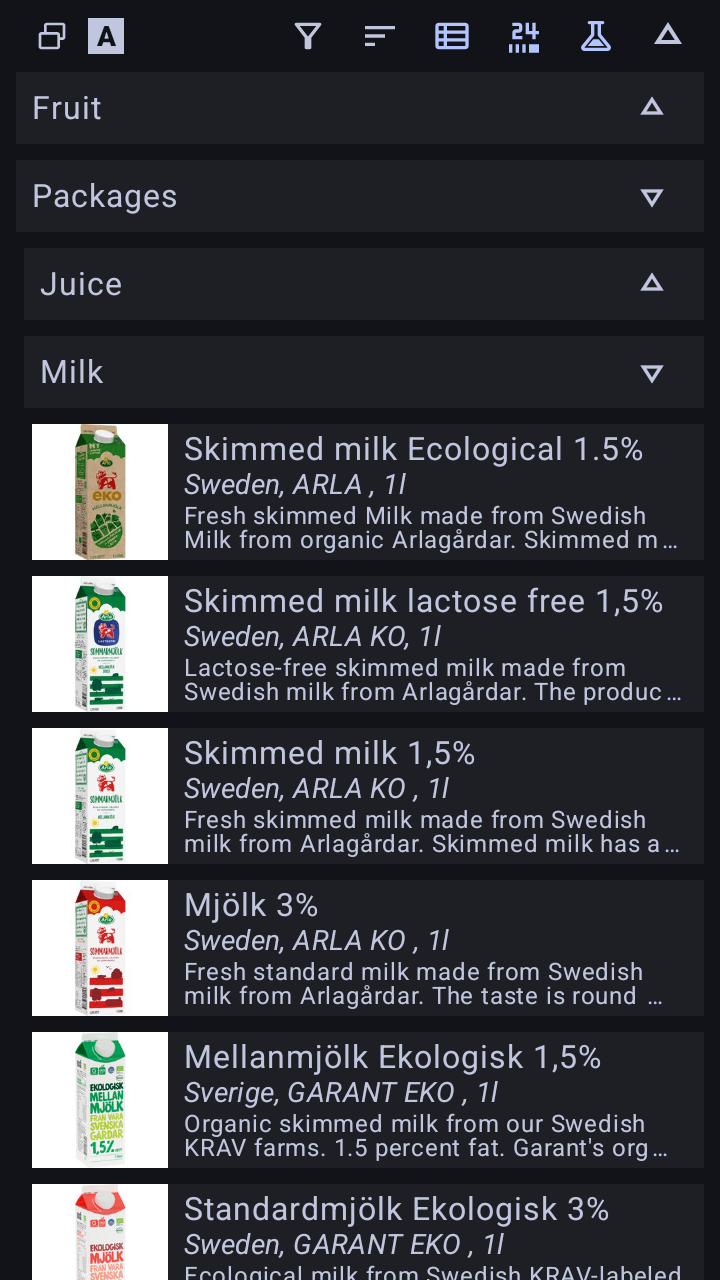

Collapsible Tree

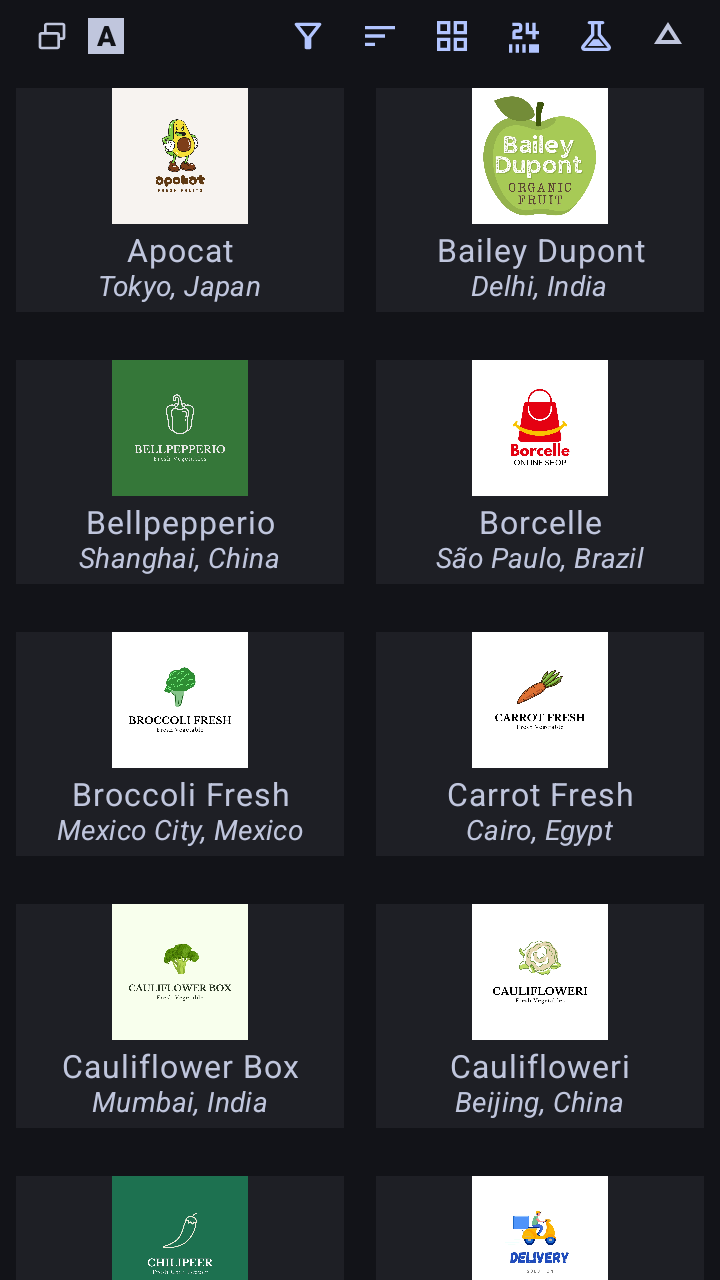

N-Column Table

Experimental Mode

Rendering and positioning of layouts is handled internally, without relying on UI libraries or context.

Layout templates are sourced from serialized strings

In Experimental Mode, UI rendering relies on algebraic calculations with no need for external dependencies. This approach promises new Browsing capabilities to low power devices.
