WeeKey

---

---

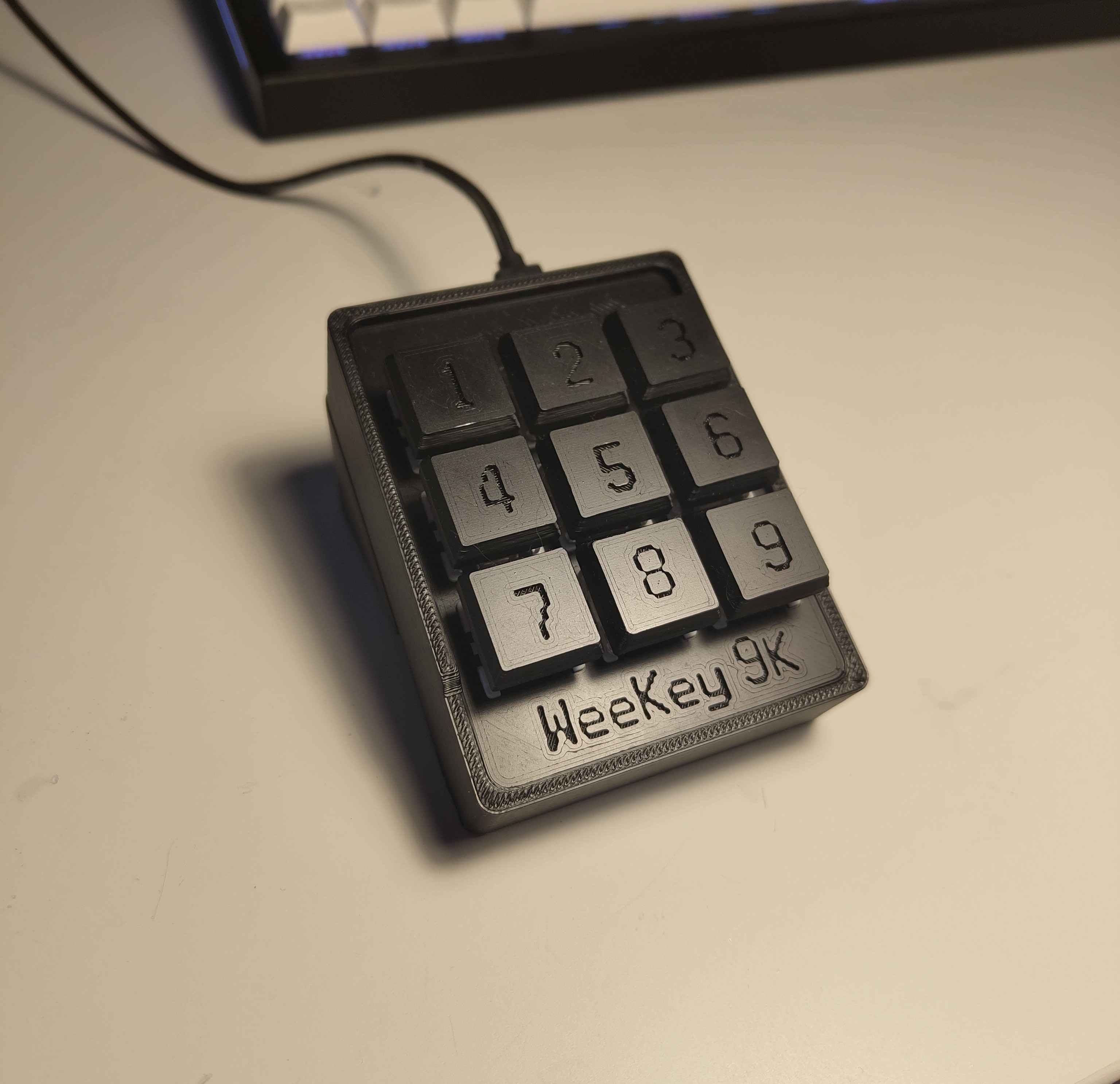

WeeKey is a macro pad with both onboard memory capabilities and fully featured control software. It uses hand soldered, regular keyboard switches and a Raspberry Pi Pico (or similar MCU) as the controller. It relies on the F13-F21 keys for input as they're unassigned in most modern software and free for the taking.

while I have version controlled STLs hosted here, I would prefer you download them printables.com so I can get my reward points :P

---

Features

• Fully custom 3D printed enclosure
• USB HID input handling via a Raspberry Pi Pico (or similar) with the usb_hid adafruit library
• Either onboard action assignment on the MCU or using WeeKey Control
• Hotswap angled spacer design allowing for fine tuning to the user's liking

---

Repo structure

📁 stl/                     # STL files for 3D printing
📁 control software/        # Control software source code
📁 pico/                    # firmware used on the MCU
📄 LICENSE                  # License for software and hardware
📄 README.md                # This file

Build guide and documentation

A full build guide, including wiring, assembly, dependencies, and usage instructions are available within the GitHub Wiki.
This includes:

• Bill of materials
• Assembly and soldering
• Software and firmware installation
• Configuration file management and presets

---

Licensing

This project uses dual licensing with MIT licensing on all code and the hardware designs are licensed under the CC-BY-SA 4.0 License. Meaning you're free to use, modify and redistribute with attribution for code and licensing deritiatives of hardware designs under the same CC-BY-SA 4.0 License

---

Future

While I made this project because I didn't want to buy a stream deck and is where I want this. I won't entirely be shelving this project. Some potential future plans consist of:

• Creating a 12K version using a key matrix as apposed to direct wire as used on the 9K version
• Updating the firmware and control software to use a custom HID report descriptor to be able to send more than the existing 12 F keys. (this isn't off the table, I made a custom HID descriptor for my previous project, The Novostok)
• Making magnetically attaching 'addons' that could add displays, midi controls, rotary dials etc...
• Making the existing control software platform agnostic, the firmware is by default but I rely on windows specific media controls for example. Without a Mac device this may prove difficult.
