Concept-first README + dictionary-card explainer page by silviot · Pull Request #10 · codemyriad/tententoon

silviot · 2026-05-28T22:06:54Z

Live preview

▶ App: https://silvio-tententoon-preview.pgs.sh/
▶ Explainer (interactive): https://silvio-tententoon-preview.pgs.sh/explain.html

Deployed from this branch (current main + the docs work) to a separate pgs.sh project, so the live tententoon site stays untouched. Drag the log(z − c) panel, flip the source (picture / grid / polar / overlay), and pull the twist slider.

What

Make the project explain itself — concept first, with a hands-on instrument.

1. Concept-first README

Side-by-side Droste vs tententoon ("same picture, two infinities"), a precise one-line definition, the log-polar idea in plain language, and the Escher / de Smit–Lenstra origin. Run/tech in a collapsed footer.

2. `explain.html` — an interactive explainer

A standalone page: an aged-paper dictionary card (syllabified headword ten·ten·toon, IPA, sense + usage example, bracketed etymology, inline SVG), then the why it never tears explanation built around live panels rendered in-browser by the app's PipelinePanelGLRenderer (reused; no duplicated math):

Now bend it — the live tententoon spiral, with a twist-angle (β) slider: pull it and watch the spiral tighten; only at the canonical β = atan(logS/2π) does it close on itself (a "closed ✓" marker shows it).
Why doesn't it tear? — a drag experiment: drag the log(z − c) lattice and the original beside it rotates (↕) and zooms (↔), with a live readout. A source toggle (picture / grid / polar / overlay) feeds the same machine different content — the polar circles are individually styled (thick / dashed / plain, ink + red) so you can follow one ring to its vertical line in the log.
the rotated-log lattice stands on its own as the "lean it over" illustration (leans with the same β).

Fed by a swappable test image (SOURCE / NEST at the top of src/explain/main.ts); patterns generated in src/explain/patterns.ts. Falls back to prose without WebGL2. explain.html is a Vite entry (rollupOptions.input).

3. In-app modal preserved

Reverted the InfoModal copy to the hand-written original and tagged it .human-written.

Screenshots

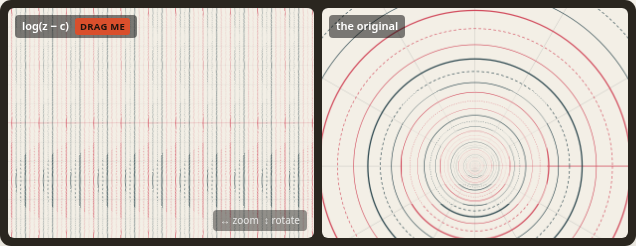

Polar source — each circle styled distinctly; in the log every circle is its own vertical line

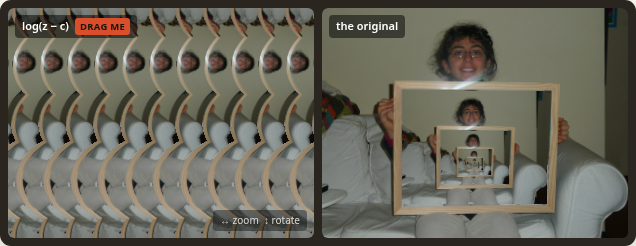

The experiment (picture) — drag log(z − c) (left); the original (right) rotates and zooms

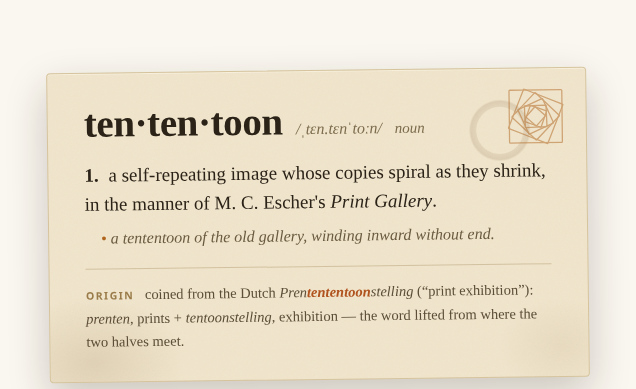

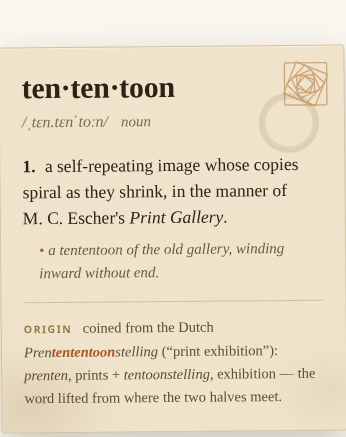

Dictionary card — desktop / mobile

Notes

Merged current main (AGPL relicense, CI, the pipeline explorable view + geometry lab, fixes). README licence updated MIT → AGPLv3.
public/explain.html → a Vite-built /explain.html + src/explain/{main,patterns}.ts. public/tententoon-demo.gif still backs the README visuals.

🤖 Generated with Claude Code

Reframe the README around the tententoon idea (same picture, two infinities) rather than implementation: a side-by-side Droste/tententoon visual, a precise one-line definition, the log-polar idea in plain language, and the Escher / de Smit-Lenstra origin. Run and tech details move to a collapsed footer. Add public/explain.html: a standalone 'what is a tententoon' deep-dive styled as an aged-paper dictionary card (syllabified headword, IPA, numbered sense + usage example, bracketed etymology, inline nested-squares SVG mark), flowing into a plain-language account of why the spiral closes seamlessly (the logarithm trick), Escher's hand-drawn blank centre, and the 2003 de Smit-Lenstra completion. Revert the in-app InfoModal copy to the hand-written original and tag it .human-written so it is preserved from future rewrites. Add public/tententoon-demo.gif (spiral demo) for the README + page visuals. docs/screenshots/ holds card previews for this PR. Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

Fold in the math from the feat/pipeline-explorable-view worktree's 4-panel view: source + rect -> log(z-c) lattice (periods logS, 2pi) -> tilt by beta = arctan(logS/2pi) -> roll back up via w(z) = c + (z-c)^alpha. Turns the 'why doesn't it tear' section from intuition into the concrete four frames the maths passes through, with named parameters. Drops the earlier complex-map aside, now redundant (step 4 carries the exact map). Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

silviot · 2026-05-29T06:23:47Z

🚀 Cloudflare preview deployed (from branch HEAD 970d798):

App: https://explainer-page.tententoon.pages.dev
Explainer page: https://explainer-page.tententoon.pages.dev/explain

Built dist/ includes explain.html (Pages serves it at the clean URL /explain). Production is untouched.

ℹ️ Note: this branch is based on the pre-pipeline main, so the preview shows the app without the 4-panel pipeline / geometry-lab view that landed in #11/#12. Worth rebasing on current main before merge.

🤖 Generated with Claude Code

# Conflicts: # README.md

explain.html moves from public/ (static) to a Vite entry (added to rollupOptions.input) with src/explain/main.ts. It loads a swappable test image (SOURCE + optional NEST consts at the top of main.ts), builds the Droste geometry with fitCropToNest/buildPanelGeometry, and renders source - log(z-c) - rotated-log - tententoon live via the app's PipelinePanelGLRenderer. No duplicated math: the page reuses the same GPU renderer and geometry helpers the in-app pipeline view uses. Dragging the log panel pans log space: horizontal pan = zoom, vertical pan = rotation, and the tententoon follows with a live readout (verified at 144 deg / x33). Falls back to the four-step prose if WebGL2 is unavailable. Removes the now-superseded static public/explain.html. Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

Per feedback, drop the 2x2 grid and the source panel. The tententoon spiral now replaces the animated GIF in 'Now bend it'. In 'Why doesn't it tear?', the log(z-c) panel becomes a hands-on experiment: drag it and the original picture beside it rotates (vertical) and zooms (horizontal), with a live readout. The rotated-log lattice stands on its own as the 'lean it over' illustration. 'The original' is rendered by the same engine with the twist off (kTwist=0), so it zooms cleanly (mipmapped) and seamlessly. Verified: vertical drag -> 144 deg rotation, horizontal -> x33 zoom. Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

Add two controls to the explorable, both feeding the reused GPU pipeline: a source toggle (picture / grid / polar / overlay) and a twist-angle (beta) slider. src/explain/patterns.ts generates grid + polar sources centred on the limit point c at the photo's pixel size. Polar rings are individually styled (thick / dashed / plain, in ink then red) so you can follow one through the map, and spaced by S^(1/6) so the style cycle is S-periodic = seamless under the Droste fold; in the log panel each ring becomes its own vertical line. The slider overrides beta = atan(logS/2pi): the tententoon twist is tan(beta) and the rotated-log leans by beta. Only at the canonical beta does the spiral close (a 'closed' marker shows it). Verified live: circles -> vertical lines, grid warps, overlay, and a 20deg twist clearly tightens the spiral. Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

It was never a theorem. de Smit and Lenstra worked out the exact map (the structure) hiding in Escher's grid, and the missing centre was then filled by computer. That is analysis plus a method/recipe, not a theorem. Rename the heading 'The theorem that filled the hole' -> 'The map that filled the hole', say 'worked out' (not 'wrote down'), and call the distinction out in the text ('this is not a theorem so much as a recipe'). Voice pass over the prose per the writing profile: drop em-dash connectors throughout (colons / parentheses / periods instead) and remove 'seamlessly' from the UI copy. Code comments left untouched (not published prose). Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

silviot · 2026-05-29T21:05:59Z

Superseded by #13, which builds on this branch and turns the explainer into a full live explorable. Continuing there.

silviot and others added 2 commits May 29, 2026 00:06

silviot and others added 6 commits May 29, 2026 08:39

Merge remote-tracking branch 'origin/main' into explainer-page

6e55e40

# Conflicts: # README.md

docs: add explorable screenshot for the PR

2f8ab18

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>

silviot mentioned this pull request May 29, 2026

Live explorable /explain.html — log → bend → exp pipeline #13

Merged

silviot closed this May 29, 2026
