VirPlot

This tool generates SVG, PDF, or PNG plots that combine viral genome feature annotations from a GFF3 file and sequencing depth from a samtools depth file.

Developed and maintained by Haoran (Henry) Li for Foundation Plant Services at UC Davis.

Built in Python using matplotlib, pyyaml, and numpy.

---

Overview

In Next Generation Sequencing (NGS), read depth provides a measure of how confidently a region of the genome was sequenced. When depth is visualized alongside gene or product annotations, it allows researchers to:

• Identify under or over-sequenced regions.
• Assess the relationship between functional elements and read depth.
• Validate annotations visually.
• Visualize contiguous coverage intervals and reveal potential breaks or low-support regions.

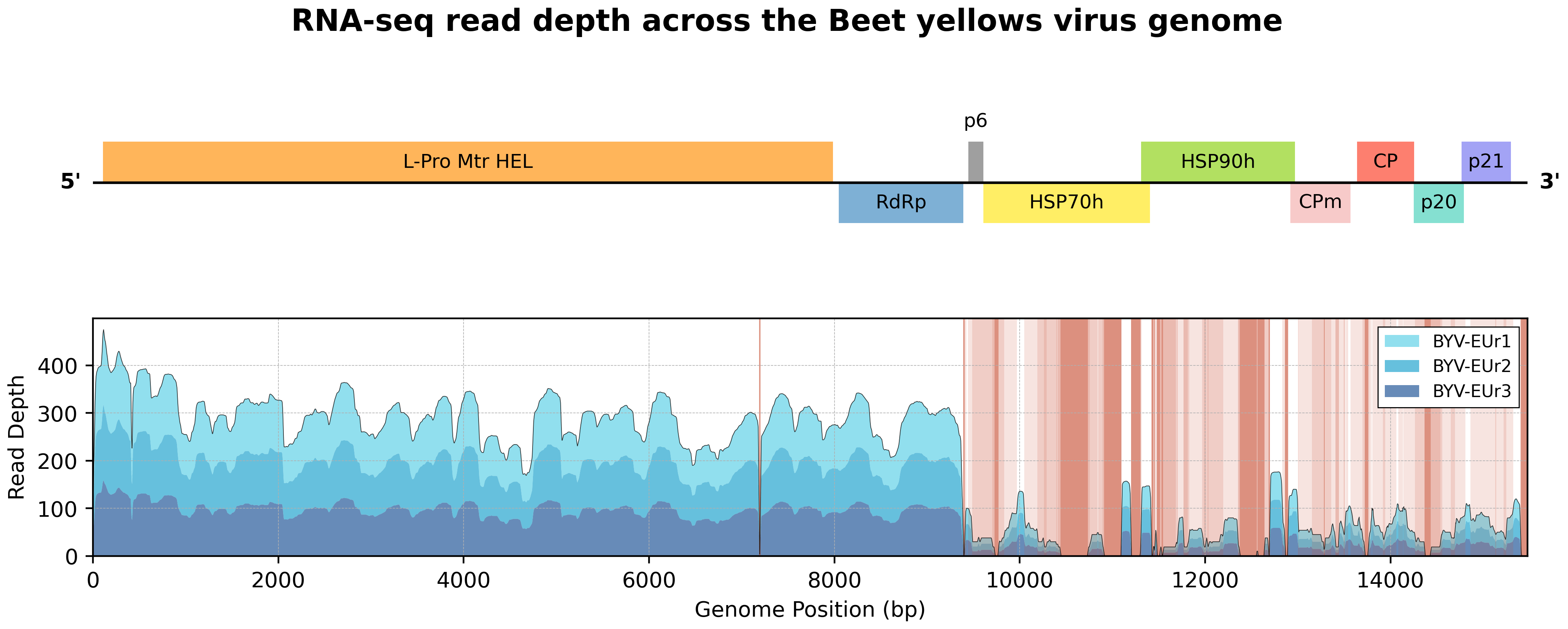

This tool generates a vertically stacked plot:

• Top: Gene product annotations (e.g. RdRp, CP, MP, etc.) as labeled colored boxes on a genome line.
• Bottom: Sequencing depth plot over the same genomic range, with optional shading of below-threshold gaps.

Both plots are aligned on a shared x-axis and exported as vector-format graphics suitable for publications.

---

Installation

Requires Python 3.9+.

pip install .

---

Quick Start

A sample GFF3, depth file, and YAML configuration are included in examples/:

# Basic plot
virplot -g examples/sample.gff3 -d examples/sample.dep -y examples/spec.yml

# PNG with smoothing, gap shading, and grid
virplot -g examples/sample.gff3 -d examples/sample.dep -y examples/spec.yml \
  --smooth --shade-breaks --grid -f png

# PDF with custom name and output directory
virplot -g genome.gff3 -d depth.dep -y spec.yml \
  -f pdf --name my_virus -o results/

To create your own configuration, copy the template and edit the color mappings:

cp examples/spec.yml my_project.yml

---

Inputs

Three input files are required:

1. GFF3 file — genome annotations containing CDS features and a region entry for sequence length
2. Depth file — tab-delimited output from samtools depth -a
3. YAML file — color mapping and style settings (see Customization)

If multiple depth files are given, VirPlot combines them into a stacked area chart showing each sample's depth contribution under a combined depth line.

---

Usage

virplot [-h] [-V] -g GFF -d DEPTH [DEPTH ...] [-l LABELS [LABELS ...]]
        -y YAML [-o OUTDIR] [-n] [--grid] [--smooth]
        [--yscale {linear,symlog}] [--linthresh LINTHRESH]
        [--name NAME] [--no-label] [--no-border]
        [-t THRESHOLDS [THRESHOLDS ...]] [-r] [--shade-breaks]
        [--legend] [--title] [-f {svg,pdf,png}] [-v]

Options

Flag	Description
-g, --gff	Path to GFF3 annotation file
-d, --depth	One or more depth files (stacked if multiple)
-l, --labels	Label(s) for each depth file (same order as --depth)
-y, --yaml	YAML file for color mapping and other specs
-o, --outdir	Output directory (default: .)
-f, --format	Output format: svg, pdf, or png (default: svg)
--name	Base name for output file (default: virplot)
-n, --normalize	Normalize depth values to max=1
--smooth	Smooth depth plot using moving average
--grid	Enable background grid on depth plot
--yscale	Y-axis scale: linear or symlog (default: linear)
--linthresh	Symlog linear threshold around 0 (default: 10.0)
--no-label	Hide feature labels
--no-border	Remove borders around feature rectangles
-t, --thresholds	Coverage thresholds for interval/gap analysis (default: 1 5)
-r, --report	Write CSV reports of intervals and gaps per threshold
--shade-breaks	Shade coverage gaps on the depth plot
--legend	Show depth plot legend
--title	Show title from YAML
-v, --verbose	Enable debug-level logging
-V, --version	Show version and exit

---

Customization

All visual elements are customizable via the YAML file:

Key	Description
color_mapping	Maps product names to hex colors
default_color	Color for unmapped products
shade_color	Color for shaded gap regions
depth_line_color	Line color for depth plot
annotation_fontsize	Font size for feature labels
stacked_area_colors	Color palette for stacked area chart
legend_location	Legend position (e.g. "upper left")
title	Plot title text

See examples/spec.yml for a complete template.

---

Supplementary Scripts

Two standalone scripts in bin/ assist with depth file preparation:

• depth_filter.py — Filter depth entries by sequence header:

  python3 bin/depth_filter.py -i input.dep -o filtered.dep --seq SEQ_NAME

• depth_merger.py — Merge depth counts across multiple files:

  python3 bin/depth_merger.py -i sample1.dep sample2.dep -o combined.dep

---

License

This project is released under the MIT License.
