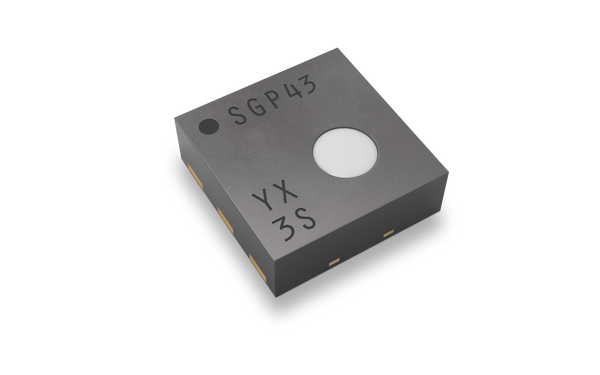

This repository contains the Python driver to communicate with a Sensirion SGP43 sensor over I2C.
Click here to learn more about the Sensirion SGP43 sensor.
Air Quality Sensor for VOC and NOx Measurements.
The default I²C address of SGP43 is 0x59.
You can connect your sensor over a SEK-SensorBridge. For special setups you find the sensor pinout in the section below.
Sensor pinout
| Pin | Cable Color | Name | Description | Comments |
|---|---|---|---|---|
| 1 | red | VDD | Supply Voltage | 1.7V to 3.6V |
| 2 | black | GND | Ground | |
| 3 | green | SDA | I2C: Serial data input / output | |
| 4 | blue | NC | Do not connect | |
| 5 | VDDH | Supply voltage hotplate; see data sheet on how to connect. | ||
| 6 | yellow | SCL | I2C: Serial clock input |
See the documentation page for an API description and a quickstart example.
The coding style can be checked with flake8:
pip install -e .[test] # Install requirements
flake8 # Run style checkIn addition, we check the formatting of files with
editorconfig-checker:
pip install editorconfig-checker==2.0.3 # Install requirements
editorconfig-checker # Run checkSee LICENSE.
