Pattern Analyzer

Pattern Analyzer is a comprehensive, plugin-based framework for binary data analysis in Python. It provides a powerful engine to apply statistical tests, cryptographic analysis, and structural format detection on any binary data source.

Turkish

Features

• Extensible Plugin Architecture: Easily add new statistical tests, data transformers, or visualizers.
• Rich Plugin Library: Comes with a wide range of built-in plugins for:
  • Statistical Analysis: NIST-like tests (Monobit, Runs, FFT), Dieharder-inspired tests, and advanced metrics like Hurst Exponent and Entropy.
  • Cryptographic Analysis: Detects ECB mode encryption, repeating-key XOR patterns, and searches for known constants like AES S-boxes.
  • Structural Analysis: Basic parsers for formats like ZIP, PNG, and PDF.
  • Machine Learning: Anomaly detection using Autoencoders, LSTMs, and pre-trained classifiers.
• Multiple Interfaces: Use Pattern Analyzer the way you want:
  • Command-Line Interface (CLI) for scripting and automation.
  • Web User Interface (Streamlit) for interactive analysis and visualization.
  • Text-based User Interface (TUI) for terminal-based interaction.
  • REST API (FastAPI) to integrate Pattern Analyzer into other services.
• High-Performance Engine: Supports parallel test execution, streaming analysis for large files, and sandboxed plugin execution for security and stability.

Installation

It is recommended to install Pattern Analyzer in a virtual environment.

# Clone the repository
git clone https://github.com/edgetype/pattern-analyzer.git
cd pattern-analyzer

# Create and activate a virtual environment
python -m venv .venv
# On Windows: .venv\Scripts\activate
# On macOS/Linux: source .venv/bin/activate

# Install the package in editable mode with all optional dependencies
pip install -e .[test,ml,ui]

The optional dependencies are:

• test: for running the test suite with pytest.
• ml: for machine learning-based plugins (TensorFlow, scikit-learn).
• ui: for the Streamlit web UI and Textual TUI.

Quick Start

Command Line Interface (CLI)

Standard Analysis

Analyze a binary file using a default set of tests and save the report.

patternanalyzer analyze test.bin --out report.json

Use a specific configuration profile for a focused analysis (e.g., cryptographic tests).

patternanalyzer analyze encrypted.bin --profile crypto --out crypto_report.json

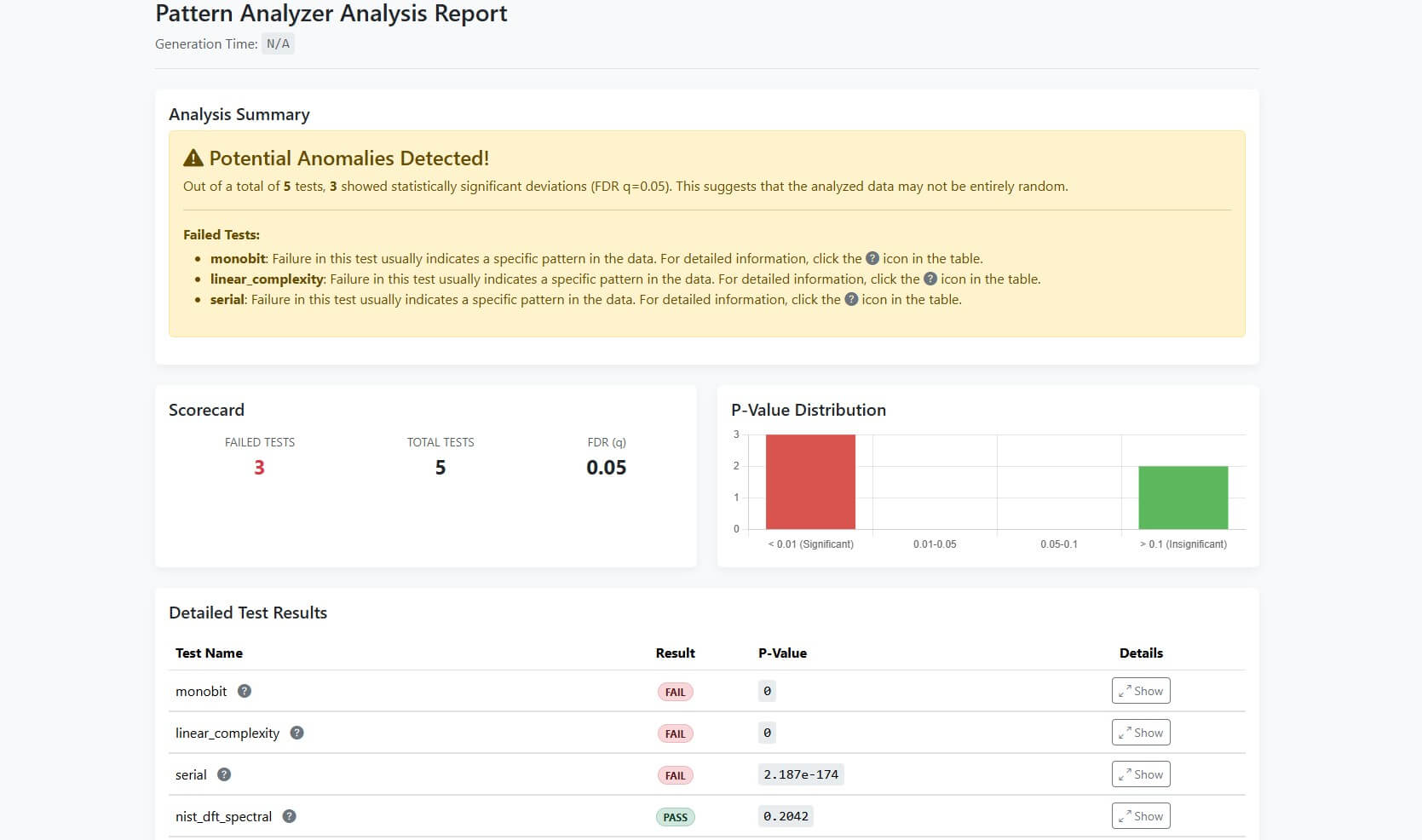

Generate an HTML report from the analysis results.

patternanalyzer analyze test.bin --profile crypto --out crypto_report.json --html-report crypto_report.html

Discovery Mode

If you don't know what kind of transformation might have been applied to your data, use --discover mode. It automatically tries to find common patterns like single-byte XOR keys and reports the most likely candidates.

patternanalyzer analyze secret.bin --discover --out discover_report.json

The output file discover_report.json will contain a list of potential transformations and a preview of the resulting data.

User Interfaces (Web & Terminal)

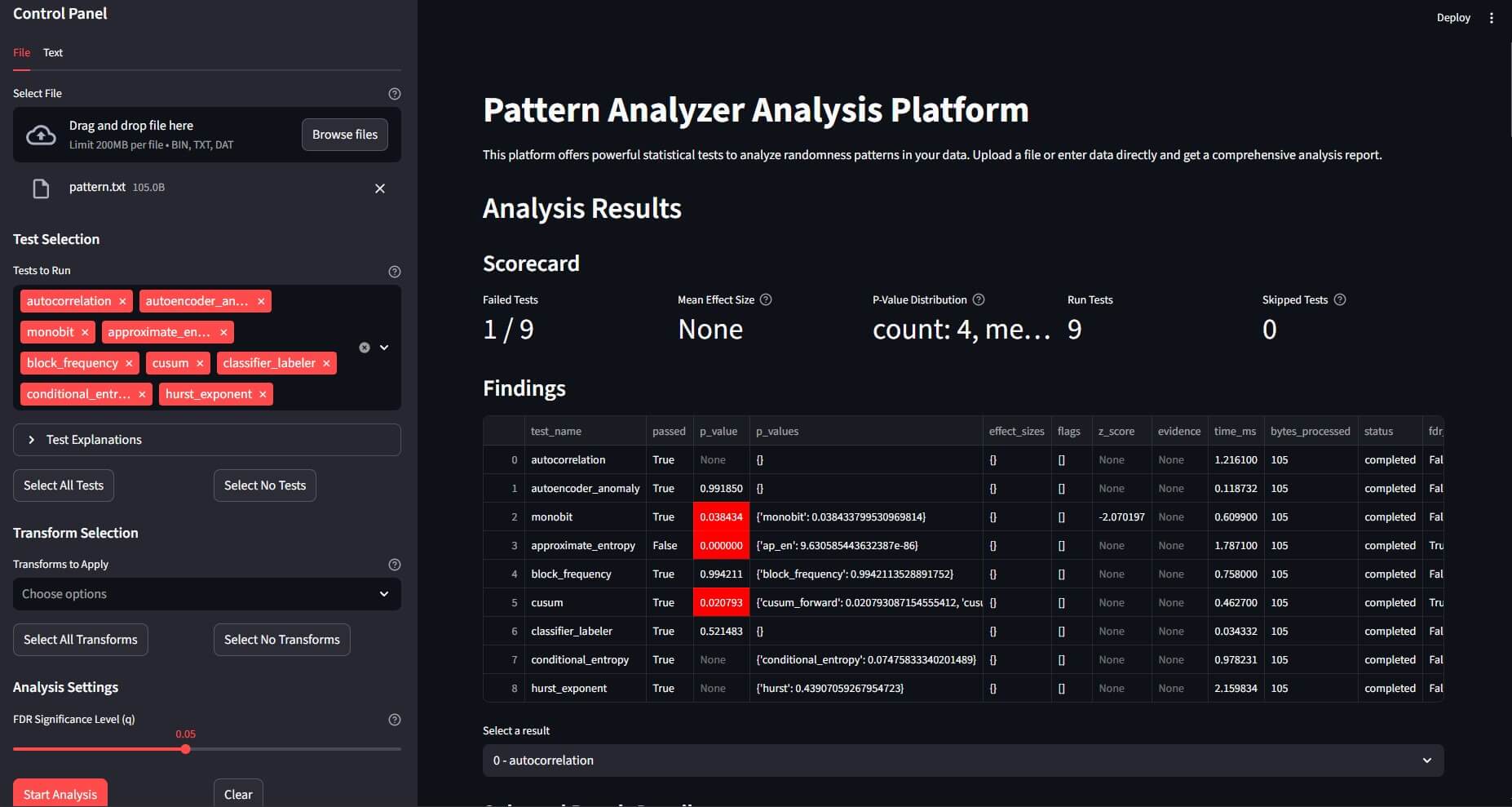

Web UI (Streamlit) Launch an interactive web interface to upload files and visualize results.

patternanalyzer serve-ui

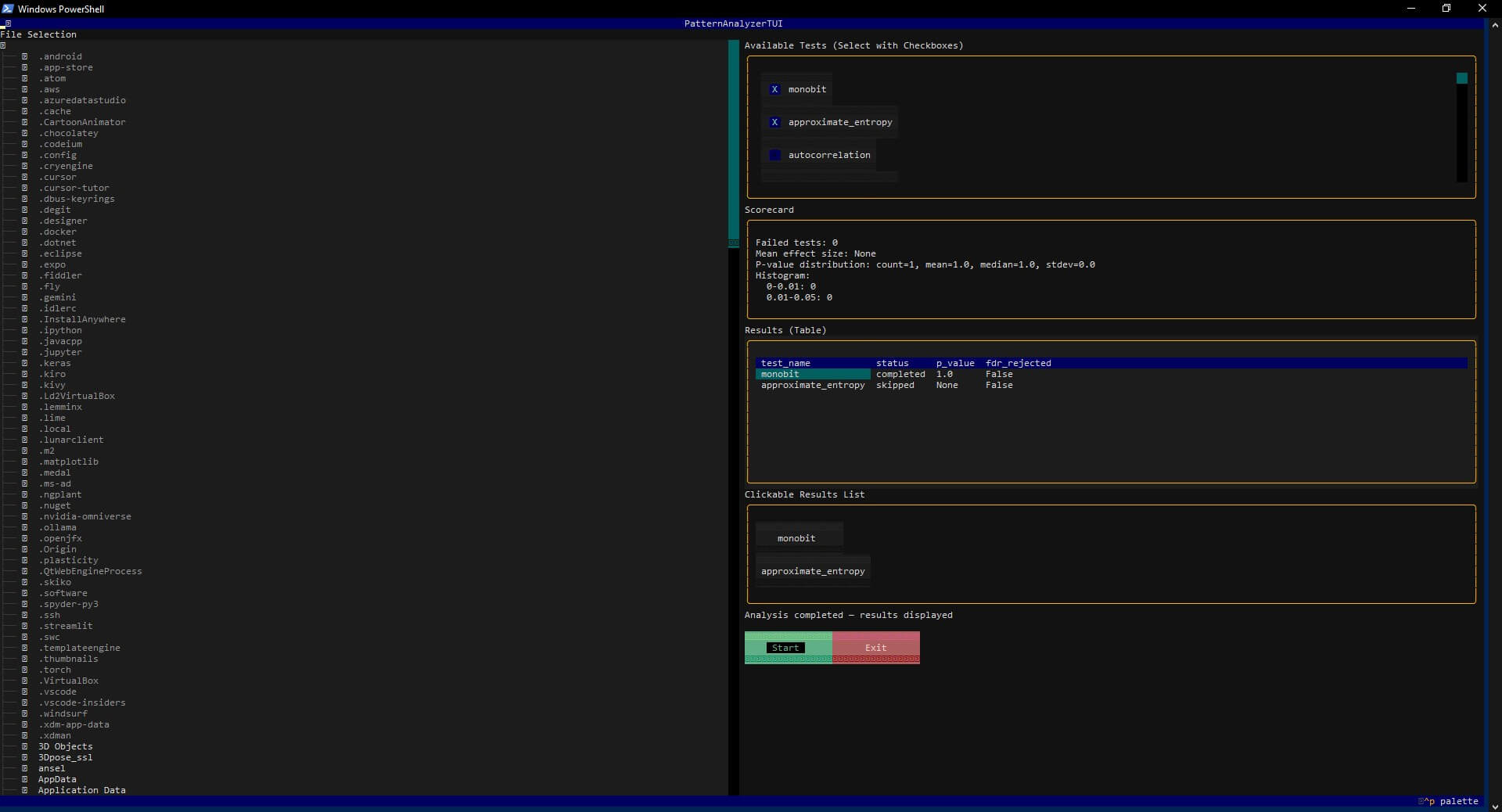

Terminal UI (TUI)

Start a terminal-based interface for analysis directly in your console.

patternanalyzer tui

Python API

Programmatically run an analysis pipeline.

from patternanalyzer.engine import Engine

# Initialize the analysis engine
engine = Engine()

# Load data from a file
with open("test.bin", "rb") as f:
    data_bytes = f.read()

# Define an analysis configuration
# This example applies a simple XOR transform before running the monobit test
config = {
    "transforms": [{"name": "xor_const", "params": {"xor_value": 127}}],
    "tests": [{"name": "monobit", "params": {}}],
    "fdr_q": 0.05 # Set the False Discovery Rate significance level
}

# Run the analysis
output = engine.analyze(data_bytes, config)

# Print the results
import json
print(json.dumps(output, indent=2))

Project Structure

pattern-analyzer/
├── patternanalyzer/               # Main source code for the framework
│   ├── plugins/              # Built-in analysis and transform plugins
│   ├── __init__.py
│   ├── engine.py             # The core analysis engine
│   ├── plugin_api.py         # Base classes for plugins (Test, Transform, Visual)
│   ├── cli.py                # Click-based Command Line Interface
│   ├── api.py                # FastAPI-based REST API
│   ├── tui.py                # Textual-based Terminal User Interface
│   └── ...
├── app.py                    # Streamlit Web User Interface
├── docs/                     # Documentation files for MkDocs
├── tests/                    # Pytest unit and integration tests
├── pyproject.toml            # Project metadata and dependencies
└── README.md

Contributing

Contributions are welcome! Please feel free to open an issue or submit a pull request.

1. Fork the repository.
2. Create a new feature branch (git checkout -b feature/my-new-feature).
3. Implement your changes and add tests.
4. Ensure all tests pass (pytest).
5. Submit a pull request.

License

This project is licensed under the MIT License. See the LICENSE file for details.
